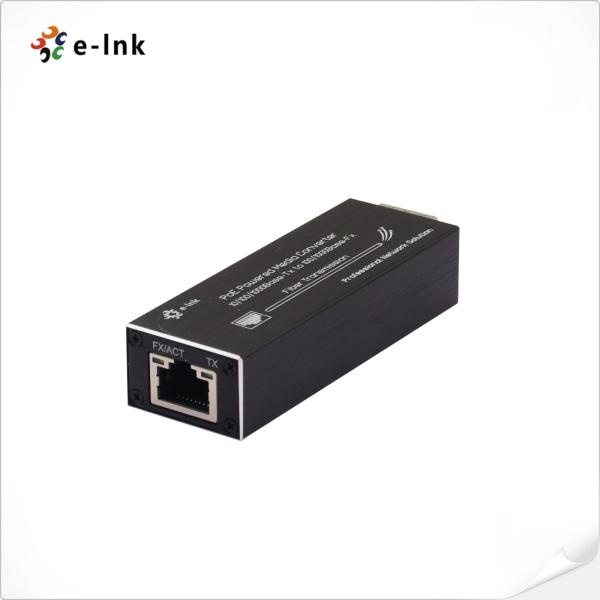

Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function

Brand Name : E-link

Model Number : LNK-M3011PD-SFP

Certification : CE FCC RoHS

Place of Origin : Guangdong

MOQ : 1 pc

Price : Please contact seller

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 10000 per mouth

Delivery Time : 5-10 working days

Packaging Details : Fiber Ethernet Media Converter Standard export package

Product name : Ethernet Media Converter

Power supply : DC 5~18V

Dimension : 78 x 27 x 18 mm

Fiber Port : SFP - 100/1000M adaptive

Weight : 46g

Power : 3W

Contact Now

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

LNK-M3011PD-SFP compact converter bridges copper and fiber networks, supporting:

  • Copper (RJ-45): 10/100/1000Base-T
  • Fiber (SFP): 100/1000Base-SX/LX

Key Features:

  • Extends range from 100m (copper) to 120km (fiber)
  • Supports multi/single-mode fiber (dual/single strand)
  • IEEE 802.3/u/z/ab compliant
  • Plug-and-play operation

Ideal for extending network reach with seamless media conversion.

(Word count reduced by ~50% while retaining all key technical specifications and benefits)

Technical Indexes

Parameter Specifications
Access mode 10/100/1000Mbps Gigabit Ethernet
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port SFP - 100/1000M adaptive
Wavelength 850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance

Fiber Cable: Depends on SFP Module

Category-5 twisted pairs: 100m
Port

One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One Optical port: SFP
Conversion means Media conversion
LFP Not Support
BER <10-9
MTBF 100,000 hours
LED indicator

PWR (Power supply)

TX (LINK100/1000, TP cable rate 100/1000M)

FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply

DC 5~15V (Type-C)

Or Powered by IEEE802.3at PoE Injector / PoE Switch
Power consumption <3W
Operating temperature 0~45ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing
Weight 46g
Dimensions (W x D x H) 78 x 27 x 18 mm

Ordering Information

Model Description
LNK-M3011PD-SFP Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Fiber Media Converter with PoE Powered Function, not including SFP module, standalone, external power adaptor
Power Options

5V Power supply adapter included, with USB Type-C cable;

Also support powered by IEEE802.3at PoE Injector / PoE Switch

Features

Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function

Overview

Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function
